TANKII Nichrome Wire Nicr7030 for Electric Heating Elements
Resistance Wire made of Nickel Chrome Alloys, Nickel Chrome Iron Alloys, Iron Chrome Aluminium Alloys, Copper Nickel Alloys.
Mainly used in heater, heating element and resistor, etc.
NiCr 80/20, NiCr 70/30, NiCr 60/15, NiCr 35/20
CrAl 15-5, CrAl 20-5, CrAl 25-5, etc...
Constantan, Alloy 30, Alloy 60, Alloy 90, etc.
Electric Resistivity from 0.02 u ohm/m-1.53 u ohm/m
Operate Temperature from 200 C to 1400 C
Pls be free to contact us if there is any question.
NiCr:
RESISTOHM 20, RESISTOHM 30, RESISTOHM 40, RESISTOHM 60, RESISTOHM 70, RESISTOHM 80
Product name
Ni70Cr30 resistor wire for high temperature tempering furnace
Chemical Composition and Propertes:
| Propertes/Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 |
| Main Chemical Composition(%) | Ni | Bal. | Bal. | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| | Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 |
| | Fe | ≤ 1.0 | ≤ 1.0 | Bal. | Bal. | Bal. |
| Max Working Temperature(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 |
| Resistivity at 20ºC
(μ Ω · m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 |
| Density(g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 |
| Thermal Conductivity (KJ/m· h· ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 |
| Coefficient of Thermal Expansion(α × 10-6/ºC) | 18 | 17 | 17 | 19 | 19 |
| Melting Point(ºC) | 1400 | 1380 | 1390 | 1390 | 1390 |
| Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic |
Application
NiCr 70-30 is used for corrosion resistant electric heating elements in industrial furnaces with reducing atmospheres. Nickel Chrome 70/30 is highly resistant to oxidation in air. Not recommend for use in MgO sheathed heating elements, or applications using nitrogen or carburizing atmospheres.
- Electrical parts and electronic components.
- Electric heating elements (home & industrial use).
- Industrial furnaces up to 1250°C.
- Heating cables, mats and cords.
|
|

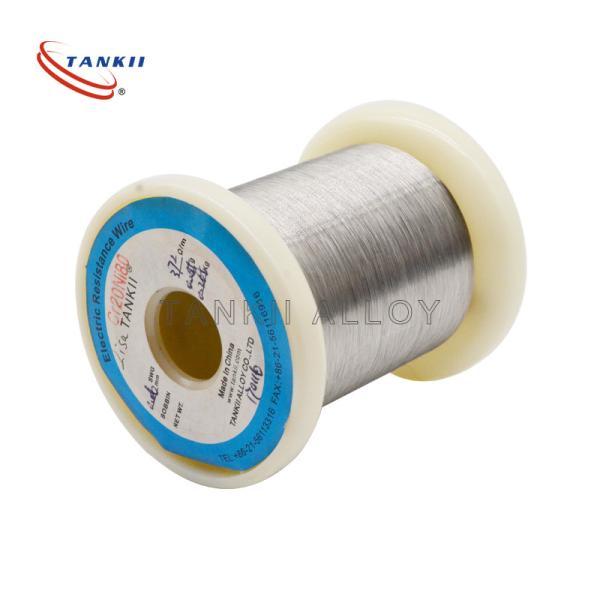

TANKII Nichrome Wire Nicr7030 for Electric Heating Elements Images
|
