Constantan Thinner Copper Nickel Wire Cuni44 0.06mm For Heating Cables

Name: Constantan Thinner Copper Nickel Wire Cuni44 006mm For Heating Cables
Brand: Tankii
Price: 1 USD

Wholesale Constantan Thinner Copper Nickel Wire Cuni44 0.06mm For Heating Cables from china suppliers

Brand Name : Tankii

Model Number : CuNi44

Certification : ISO9001

Place of Origin : China mainland

MOQ : 10kg per size

Price : Negotiable

Payment Terms : Western Union, L/C, D/A, D/P, T/T

Supply Ability : 1000T per year

Delivery Time : 3-5 days after getting the payment

Packaging Details : Standard export package

Grade : Cuni44

Wire shape : round wire

wire color : Silvery color

Application : Heating element for auto

Density : 8.9

Item : Constantan Wire Isotan Cuni44 0.06mm Thinner Wire Used For Heating Cables Or Shunts

Contact Now

Constantan Wire Isotan Cuni44 0.06mm Thinner Wire Used For Heating Cables Or Shunts

Product Description

Copper nickel alloy Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". it also shows better corrosion resistance, and welding performance.

The copper-based low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
44	1.0	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	400ºC
Resisivity at 20ºC	0.49±10%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	23
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	≥420Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC)	-43
Micrographic Structure	austenite
Magnetic Property	Non

Our advantages:

a) We can provide high quality material, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.
b) We can provide all kinds of electric heating alloy material and elements, including customized products.
c) We can provide a complete solution for you.
d) OEM service can be provided.
e) Product selection
f) Process optimization
g) New product development

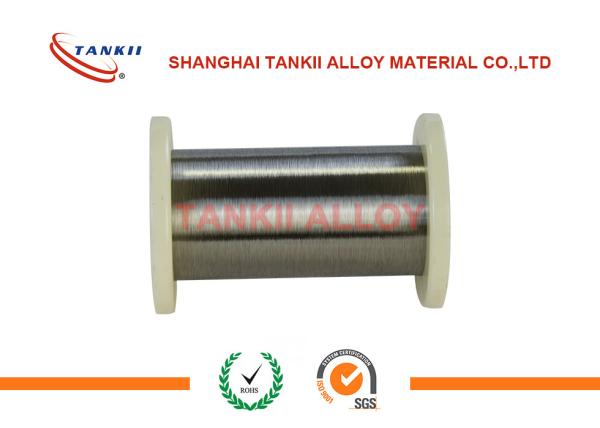

Product picture:

Constantan Thinner Copper Nickel Wire Cuni44 0.06mm For Heating Cables

Package:

Constantan Thinner Copper Nickel Wire Cuni44 0.06mm For Heating Cables
