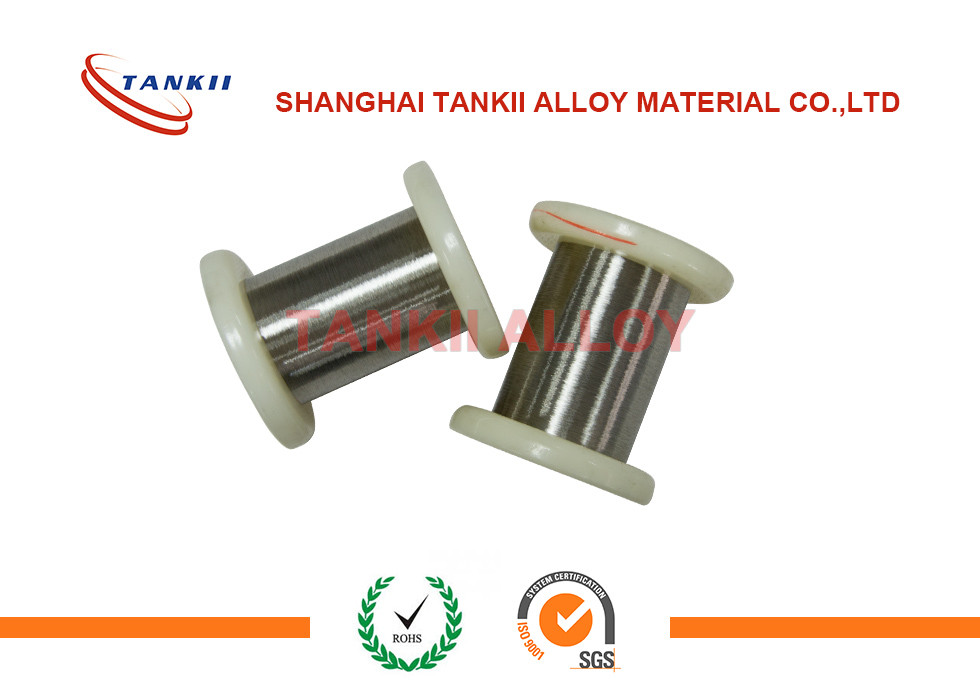

Corrosion Resistant Nickel Precision Alloy Round Wire Ni201 Ni200 High Purity

Name: Corrosion Resistant Nickel Precision Alloy Round Wire Ni201 Ni200 High Purity
Brand: TANKII
Price: 1 USD

Wholesale Corrosion Resistant Nickel Precision Alloy Round Wire Ni201 Ni200 High Purity from china suppliers

Brand Name : TANKII

Model Number : Ni200

Certification : ISO9001:2008

Place of Origin : Shanghai, China

MOQ : 10kg

Price : To negotiate

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 200+TON+MONTH

Delivery Time : 7-12 DAYS

Packaging Details : Spool, Coil, Carton, Plywood case with plastic film according to client´s requirements

Material : Pure Nickel

Density : 8.9

Melting Point : 1453

Boiling Point : 2732

Feature : Corrosion Resistant, Good Electric Conductivity

Min Ni : 99%

Contact Now

High Purity Nickel Wire Ni201 Ni200 Corrosion Resistant Filament Round Wire

General Introduction

Ni 201 and Ni 200 are also known as Nickel Alloy Ni-201 and Commercially Pure Nickel, Ni 201. Ni 201 only differs from Ni 200 by its carbon content (.02% max in Ni 201 versus .15% max in Ni 200). This slight drop in carbon allows Ni 201 to be utilized in higher temperature applications (over 600°F) including:

Handling and manufacturing sodium hydroxide above 300°C
Soap manufacturing
Viscose Rayon manufacturing
Production of benzene, methane, and ethane
Reactors and vessels

Like Ni 200, Ni 201 offers a wide range of benefits to users including:

It can be hot formed in a almost unlimited number of shapes
Cold rolled under proper conditions
Highly resistant to various reducing chemicals
Outstanding resistance to caustic alkalis
Good electrical and magnetostrictive properties
High electrical and thermal conductivity
The toughness of nickel

Main Features

Pure nickel shows excellent corrosion resistance in alkaline solutions such as caustic soda, and also shows outstanding resistance against highly pure halogen gas and non-oxidizing acids. It is used in wide areas such as caustic soda concentration containers. The main features of the various types of pure nickel are indicated below.

Types and features of pure nickel handled by Hitachi Metals, Ltd. Okegawa Works

Ni200	Normal pure nickel for industrial use.
Ni201	Low-carbon nickel. For its high thermal stability (315°C or above), it is used for equipment utilized at temperatures 315°C or higher.
Ni	Precipitation hardening type alloy material made by adding small amounts of aluminum and titanium. It is used for parts that require a high level of strength such as bolts and springs.

Physical properties/Mechanical Properties

Material	Specific gravity	Melting temperature range	Specific heat cal/(g/°C)	Coefficient thermal expansion (Temperature range) (×10-6/°C)	Specific thermal conductivity	Electrical Resistivity μΩ/cm
NC-Ni (Ni200)	8.88	1435∼1446	0.109	13.9 (21∼201)	0.16	10.0
LC-Ni (Ni201)	8.88	1435∼1446	0.109	13.3 (21∼93)	0.16	10.0

Mechanical Properties

Material and shape	Tensile strength N/mm2(kgf/mm2)	Yield Strength (0.2% offset) N/mm2 (kgf/mm2)	Elongation %	Hardness HRB
NC-Ni Plate / Bar / Pipe (Annealed)	≧380(≧38.7)	≧105(≧10.5)	≧40	Reference 90∼140
LC-Ni Plate / Bar / Pipe (Annealed)	≧350(≧35.2)	≧80(≧8.4)	≧40	Reference 75∼135
NC-Ni Pipe (Stress relieved)	≧450(≧45.7)	≧280(≧28.1)	≧15	-
LC-Ni Pipe (Stress relieved)	≧410(≧42.1)	≧210(≧21.1)	≧15	-

Corrosion Resistant Nickel Precision Alloy Round Wire Ni201 Ni200 High Purity
