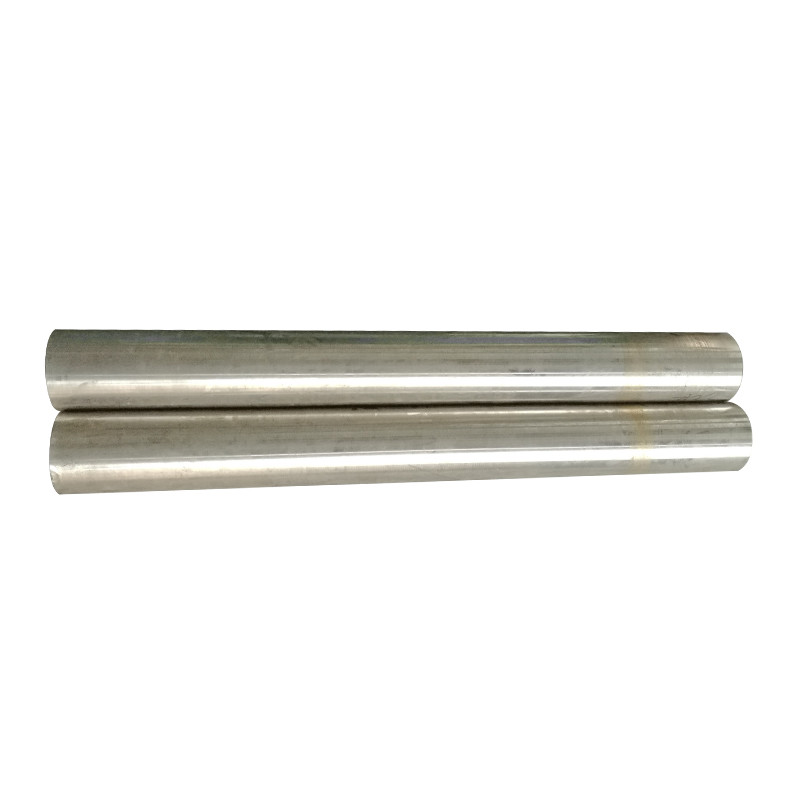

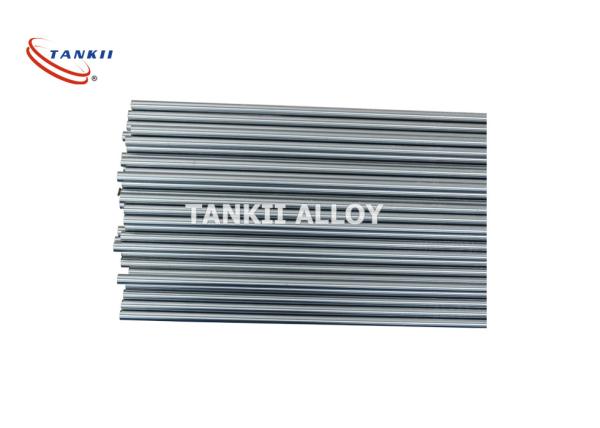

Round Nicr Alloy Rod Chromel For Braking Resistor D/ NiCr3020

Name: Round Nicr Alloy Rod Chromel For Braking Resistor D NiCr3020
Brand: TANKII
Price: 1 USD

Wholesale Round Nicr Alloy Rod Chromel For Braking Resistor D/ NiCr3020 from china suppliers

Brand Name : TANKII

Model Number : Ni30Cr20

Certification : ISO9001

Place of Origin : CHINA

MOQ : 20kg

Payment Terms : L/C, T/T, Western Union

Packaging Details : 20, 000kg/month

Grade : NiCr Alloy

Application : Industry

Type : Nickel Bar

Surface : Bright

Shape : Round

Condition : Soft Annealed

Contact Now

NiCr3020 / Ni30Cr20 Nichrome Alloy Rod for Braking Resistor

1.About Nichrome Ni30Cr20 Rod

Nichrome alloy Ni35Cr20 characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1100°C.

2.Ni30Cr20 has many other Grade name:
Cr20Ni35, Chromel D, Nikrothal 40, N4, Chromax, HAI-NiCr 40, Tophet D, Resistohm 40, Cronifer III, 35-20 Ni-Cr, Alloy D, Nikrothal 40, MWS-610, Stablohm 610

3.Chemical Composition of Ni30Cr20

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.08	0.02	0.015	0.60	0.75~1.60	18.0~21.0	34.0~37.0	Max 0.50	Bal.	-

4.Typical Mechanical properties of Nicr3020

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
370	750	35

5.Temperature Factors Of Electrical Resistivity

20ºC	100ºC	200ºC	300ºC	400ºC	500ºC	600ºC
1	1.011	1.024	1.038	1.052	1.064	1.069
700ºC	800ºC	900ºC	1000ºC	1100ºC	1200ºC	1300ºC
1.073	1.078	1.088	1.095	1.109	-	-

6.All shape of Nichrome
Wire, ribbon( flat wire ), strip, bar, plate, tube
7.size of Ni30Cr20

Wire	0.018mm-10mm
Ribbon	0.050.2mm-2.06.0mm
Strip	0.55.0mm-5.0250mm
Bar	10-100mm
