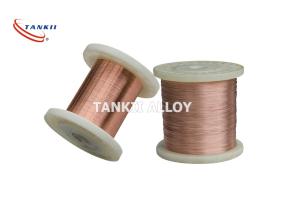

0.5mm Copper Nickel Alloy Wire Cuni8 Low Resistivity Heating

Name: 05mm Copper Nickel Alloy Wire Cuni8 Low Resistivity Heating
Brand: TANKII
Price: 1 USD

Wholesale 0.5mm Copper Nickel Alloy Wire Cuni8 Low Resistivity Heating from china suppliers

Brand Name : TANKII

Model Number : CU-NI2

Certification : ISO9001 SGS

Place of Origin : China

MOQ : 20KG

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Tons per month

Delivery Time : 7-20 days

Packaging Details : Spool + Carton + Wooned Case

Material : Copper-nickel alloy

Resistivity : 0.05

Spool : DIN 80,DIN 100,DIN125, DIN160

Diameter : 0.05-1.5mm

Application : heating

Contact Now

General Description

Due to has high tensile strength and increased resistivity values, copper nickel alloy wires are the first choice for applications as resistance wires. With the different nickel amount in this product range, the characteristics of the wire can be chosen according to your requirements. Copper nickel alloy wires are available as bare wire, or enamelled wire with any insulation and self-bonding enamel. Furthermore, litz wire made of enamelled copper nickel alloy wire are available.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2	-	-	-	Bal	-	ND	ND	ND	ND

Application of CuNi2

CuNi2 low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

Mechanical Properties

Type	Electrical resistivity (20degreeΩ mm²/m)	temperature coefficient of resistance (10^6/degree)	Dens ity g/mm²	Max. temperature (°c)	Melting point (°c)
CuNi1	0.03	<1000	8.9	/	1085
CuNi2	0.05	<1200	8.9	200	1090
CuNi6	0.10	<600	8.9	220	1095
CuNi8	0.12	<570	8.9	250	1097
CuNi10	0.15	<500	8.9	250	1100
CuNi14	0.20	<380	8.9	300	1115
CuNi19	0.25	<250	8.9	300	1135
CuNi23	0.30	<160	8.9	300	1150
CuNi30	0.35	<100	8.9	350	1170
CuNi34	0.40	-0	8.9	350	1180
CuNi40	0.48	±40	8.9	400	1280
CuNi44	0.49	<-6	8.9	400	1280
