Wear Resistance Non Magnetic CuNi1 Copper Nickel Strip

Brand Name : TANKII

Model Number : Nickel

Certification : ISO9001:2008

Place of Origin : Shanghai, China

MOQ : 20kg

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100+TON+MONTH

Delivery Time : 7-20 DAYS

Packaging Details : Spool, carton, plywod case with plastic film as clients required

material : nickel

color : gold,silver

shape : strip

density : 8.9g/cm3

condition : soft,annealed

Elongation : ≥25 %

Contact Now

Non magnetic Copper Nickel Alloy Strip Gold / Silver Color Good Wear Reaiatance

Description

Material: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44 in form of strip/heet/plate/falt wire/ribbon
As a big manufacturer and exporter in China on the line of electric resistance alloy, we can supply all kinds of electric resistance alloy wire and strips (resistance steel wire and strips),

Advantage
Due to has high tensile strength and increased resistivity values, TANKII copper nickel alloy wires are the first choice for applications as resistance wires. With the different nickel amount in this product range, the characteristics of the wire can be chosen according to your requirements. Copper nickel alloy wires are available as bare wire, or enamelled wire with any insulation and self-bonding enamel. Furthermore, litz wire made of enamelled copper nickel alloy wire are available.

Application

Copper-nickel alloy contains specific minor amounts of additional elements to achieve precise values for the temperature coefficient of resistivity. Careful control of melting and conversion practices results in a very low level of pinholes at ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.

Low-voltage circuit breaker, thermal overload relay, electrical heating cable, electrical heating mats, snow melting cable and mats, ceiling radiant heating mats, Floor heating mats & Cables, Freeze protection cables, electrical heat tracers, PTFE heating cables, hose heaters, and other low-voltage electrical product
Size
Wires: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
Strips: 0.05*5.0-5.0*250mm Bars: D10-100mm

Properties of CuNi44


Max Continuous Service Temp

400ºC

Resisivity at 20ºC

0.49±5%ohm mm2/m

Density

8.9 g/cm3

Thermal Conductivity

-6(Max)

Melting Point

1280ºC

Tensile Strength,N/mm2 Annealed,Soft

340~535 Mpa

Tensile Strength,N/mm3 Cold Rolled

680~1070 Mpa

Elongation(anneal)

25%(Min)

Elongation(cold rolled)

≥Min)2%(Min)

EMF vs Cu, μV/ºC (0~100ºC)

-43

Micrographic Structure

austenite

Magnetic Property

Non

Product Description:

1. CuNi1 is widely used in low-voltage circuit breaker, electric blankets.thermal overload relay and other low-voltage electrical product.

2. Typical Physical Properties:
Density (g/cm3)=8.9
Electrical resistivity at 20℃(Ωmm2/m)=0.03
Conductivity coefficient at 20℃ (WmK)=145
Coefficient of Thermal Expansion x10-6/℃=17.5
Melting point (℃)=1085
Max continuous operating temperature in air (℃)=200
Magnetic properties=non-magnetic


Product Tags:

CuNi1 Copper Nickel Strip



Non Magnetic Copper Nickel Strip



Wear Resistance Copper Nickel Strip


Wholesale Wear Resistance Non Magnetic CuNi1 Copper Nickel Strip from china suppliers

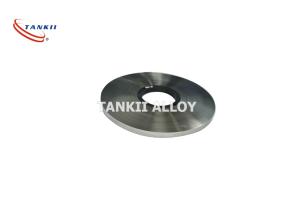

Wear Resistance Non Magnetic CuNi1 Copper Nickel Strip Images
