0.15mm Constantan / Manganin Enamelled/Enameled Wire

Name: 015mm Constantan Manganin EnamelledEnameled Wire
Brand: TANKII
Price: 1 USD

Wholesale 0.15mm Constantan / Manganin Enamelled/Enameled Wire from china suppliers

Brand Name : TANKII

Model Number : 6J40

Certification : ISO9001: 2008

Place of Origin : Shanghai, China

MOQ : 20kg

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 300+TON+MONTH

Delivery Time : 15-28DAYS

Packaging Details : Spool, carton, plywod case with plastic film as clients required

material : Constantan/ Manganin

Wire Chemical : Cu Ni/ Cu Mn

type : Round Insulated Wire

Insulation Material : Polyesterimide, Polyester

application : Electric Instrument, Electric Part Coil and so on

class : 130,155,180,200,220

Contact Now

Enamelled Manganin Resistance Wire for Precision Instrument , Enamelled Wire 0.018mm - 3.0mm

Product Description

These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Tpye of Insulation:

1) Polyester resistance wire , class 130

2) Modified polyester resistance wire , class 155

3) Polyesterimide resistance wire , class 180

4) Polyester (imide) coated with polyamide-imide resistance wire , class 200

5) Polyimide resistance wire , class 220

Tpye of Bare Wire

main property type		Cuni1	CuNI2	CuNI6	CuNI10	CuNi19	CuNi23	CuNi30	CuNi34	CuNI44
main chemical composition	Ni	1	2	6	10	19	23	30	34	44
	MN	/	/	/	/	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working temperature		/	200	220	250	300	300	350	350	400
density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
resistivity at 20 °c		0.03 ± 10%	0.05 ±10%	0.1 ±10%	0.15 ±10%	0.25 ±5%	0.3 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
temperature coefficient of resistance		<100	<120	<60	<50	<25	<16	<10	-0	<-6
tensile strength mpa		>210	>220	>250	>290	>340	>350	>400	>400	>420
elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25
melting point °c		1085	1090	1095	1100	1135	1150	1170	1180	1280
coefficient of conductivity		145	130	92	59	38	33	27	25	23

CuNi Copper Nickel Alloy Wire

Manganin Copper Nickel Alloy Wire

Enameled Copper Nickel Alloy Wire

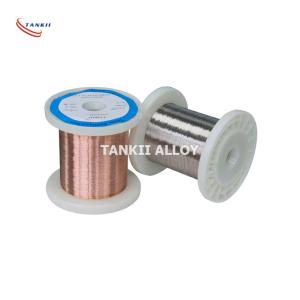

0.15mm Constantan / Manganin Enamelled/Enameled Wire Images
