Brand Name : TANKII
Model Number : Ni60Cr15
Certification : ISO9001: 2015
Place of Origin : Shanghai, China
MOQ : 20kg
Price : Negotiated
Payment Terms : L/C, T/T, Western Union, Paypal
Supply Ability : 200+TON+MONTH
Delivery Time : 7-12 DAYS
Packaging Details : Spool, carton, plywod case with plastic film as clients required
Size : Customized size
Grade : Ni80Cr20, Ni60Cr15, Ni35Cr20...
Type : Nickel based Alloy
Alloy or not : Yes
Powder or not : No
Condition : Annealed
0.15mm*4mm NCHW-2 Standard Nickel Based Alloy Flat Wire/ Flat Ribbon/ Ribbon
1. Description
With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature.
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high Speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.
2. Specification
1). Locomotive resistance strip:
Thickness: 0.6mm-1.5mm
Width: 60mm-90mm
2). Electric ceramic cooktop resistance strip:
Thickness: 0.04mm-1.0mm
Width: 5mm-12mm
Thickness&Width: (0.04mm-1.0mm)× 12mm(above)
3). Low resistance ribbon:
Thickness&Width: (0.2mm-1.5mm)*5mm
4). Industrial furnace ribbon:
Thickness: 1.5mm-3.0mm
Width: 10mm-30mm
3. Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
4. Packing detail
Spool, coil, wooden case(as per client's requirement)
5. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery.
Ability to add multiple features
We are capable of adding a variety of features to metallic materials
(resin coating, plating, bonding different kinds of metal, multigage skiving, etc.).
Unique technology and custom-made solutions
We provide customed solutions to your problems with our unique
technologies and well versed knowledge of materials acquired through
our experience of manufacturing 50,000 items.
Specification:
Alloy Type | Diameter | Resistivity | Tensile | Elongation (%) | Bending | Max. Continuous | Working Life |
(mm) | (μΩm)(20°C) | Strength | Times | Service | (hours) | ||
(N/mm²) | Temperature (°C) | ||||||
Cr20Ni80 | <0.50 | 1.09±0.05 | 850-950 | >20 | >9 | 1200 | >20000 |
0.50-3.0 | 1.13±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
>3.0 | 1.14±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
Cr30Ni70 | <0.50 | 1.18±0.05 | 850-950 | >20 | >9 | 1250 | >20000 |
≥0.50 | 1.20±0.05 | 850-950 | >20 | >9 | 1250 | >20000 | |
Cr15Ni60 | <0.50 | 1.12±0.05 | 850-950 | >20 | >9 | 1125 | >20000 |
≥0.50 | 1.15±0.05 | 850-950 | >20 | >9 | 1125 | >20000 | |
Cr20Ni35 | <0.50 | 1.04±0.05 | 850-950 | >20 | >9 | 1100 | >18000 |
≥0.50 | 1.06±0.05 | 850-950 | >20 | >9 | 1100 | >18000 |
![]() |

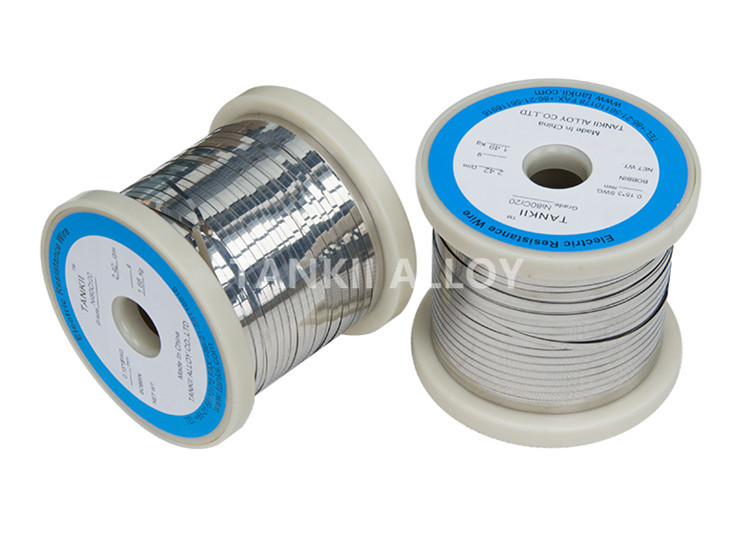

Annealed Nickel Based Alloy Flat Wire / Flat Ribbon High Resistance Images |
